; ; ; ; Updated in 2024 : 1 : 1 : Instruction Segment ;

( Polygon in Circle, Polygon in Directional, Polygon in Square, Triangles, a.k.a. Polygon), also see: Numbers in Computing ... ;

Before assembling assembly: A L U, Memory, Register [also see: register map], Clock Cycle, State, and etc. must be analyzed accordance with the most important time. Because, time causes stack such as sequential stack and random stack. After instruction segments have been assembled, ready to compile code AND ready to configure script must be engineered.

Also see: Address; Sample 1;

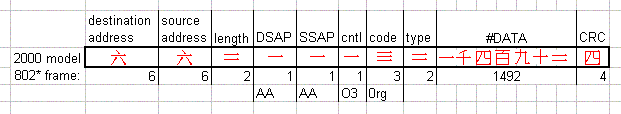

Year 2000 model: 802* frame



Year 2000 model: Address mask frame with 16 bit identifier and 16 bit sequence number

...



Year 2000 model: ARP packet; Request, Reply, R A R P are the same;

...



Year 2000 model: Destination unreachable frame;

Type 3 8bit; Code 8bit; Checksum 16bit; Unused 16bit; M T U next hop 16bit; Internet header; 8B datagram;

Type 12 8bit; Code 8bit; Checksum 16bit; Pointer 16bit; Un-used 16bit; Internet header; 8B datagram;

...

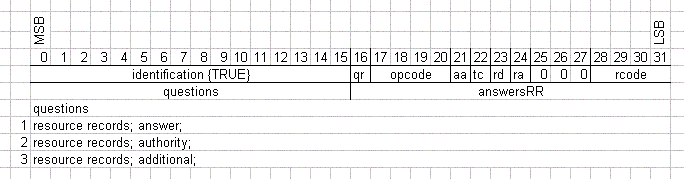

Year 2000 model: DNS U D P packet; Also see: lm hosts; still do not understand DNS?

{TRUE} to response, value 1 in q r; {FALSE} to query, value 0 in q r; Value 0 in op code is standard query, value 1 in op code is inverse query, value 2 in op code is server status request; {TRUE} a a is authoritative answer's value TRUE, {FALSE} a a is authoritative answer's value FALSE; {TRUE} t c is truncate value TRUE, {FALSE} t c is truncate value FALSE; {TRUE} rd is recursion desire's value TRUE, {FALSE} rd is recursion desire's value FALSE; {TRUE} r a is recursion available 's value TRUE, {FALSE} r a is recursion available 's value FALSE; Value 0 in r code is no error, value 3 in r code is name error; questions' value 0 is reply, questions' value => 1 is query; answers RR 's value 0 query, answers RR 's value => 1 is reply;



Year 2000 model: Echo request frame echo reply frame

...



Year 2000 model: Ethernet frame

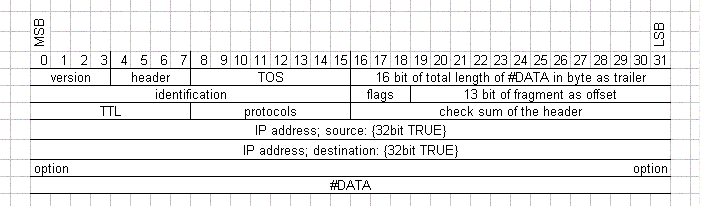

Year 2000 model: IP datagram, MAX IP packet size is 165535 B; 232 - 1;



Year 2000 model: PPP frame





Year 2000 model: Redirect frame

...



Year 2000 model: Source quench frame

...



Year 2000 model: Time exceeded frame

...



Year 2000 model: Time stamp request frame time stamp reply frame

...



For processor independent OS engineers and scientists only: Analyze each processor, functionalities, complexity regions, and then test each instruction segment;
